Typical Case: New Oil Separator Installed, Yet Oil Consumption Remained High

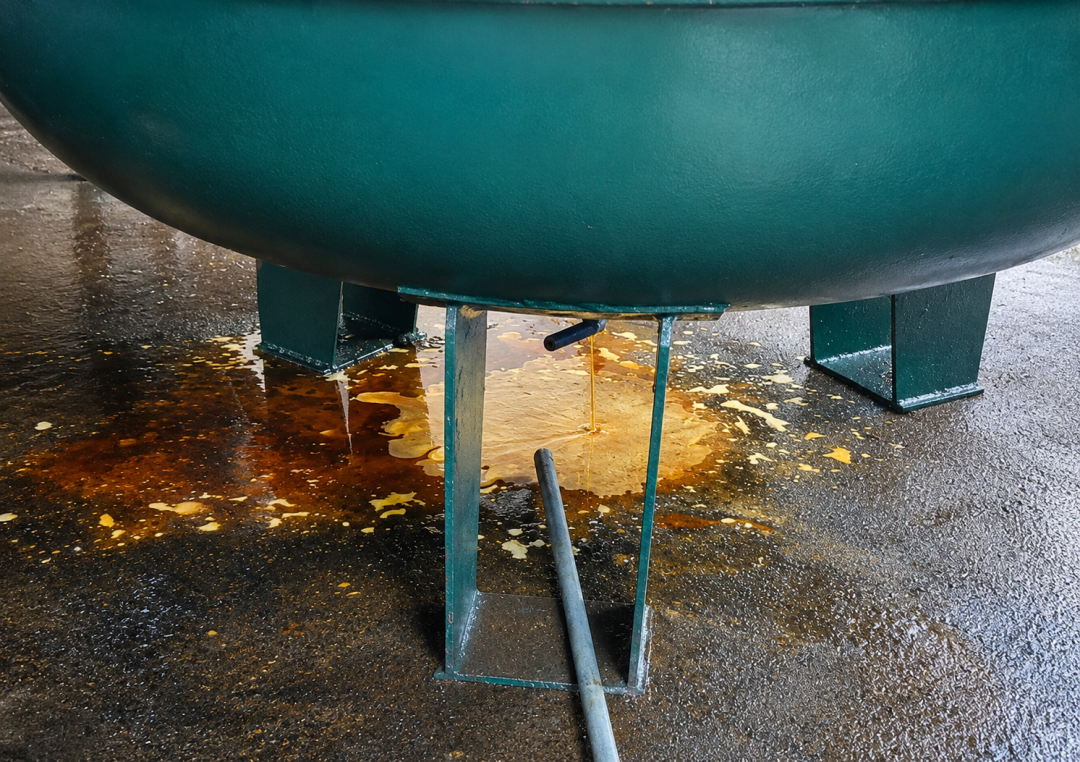

An oil-injected screw compressor at an electronics factory developed severe oil carryover after maintenance. After only 300 operating hours, a large amount of lubricant was found in the air tank drain. The maintenance team replaced the oil separator element with a new one, but the problem persisted, resulting in continuous oil replenishment and increased maintenance costs.

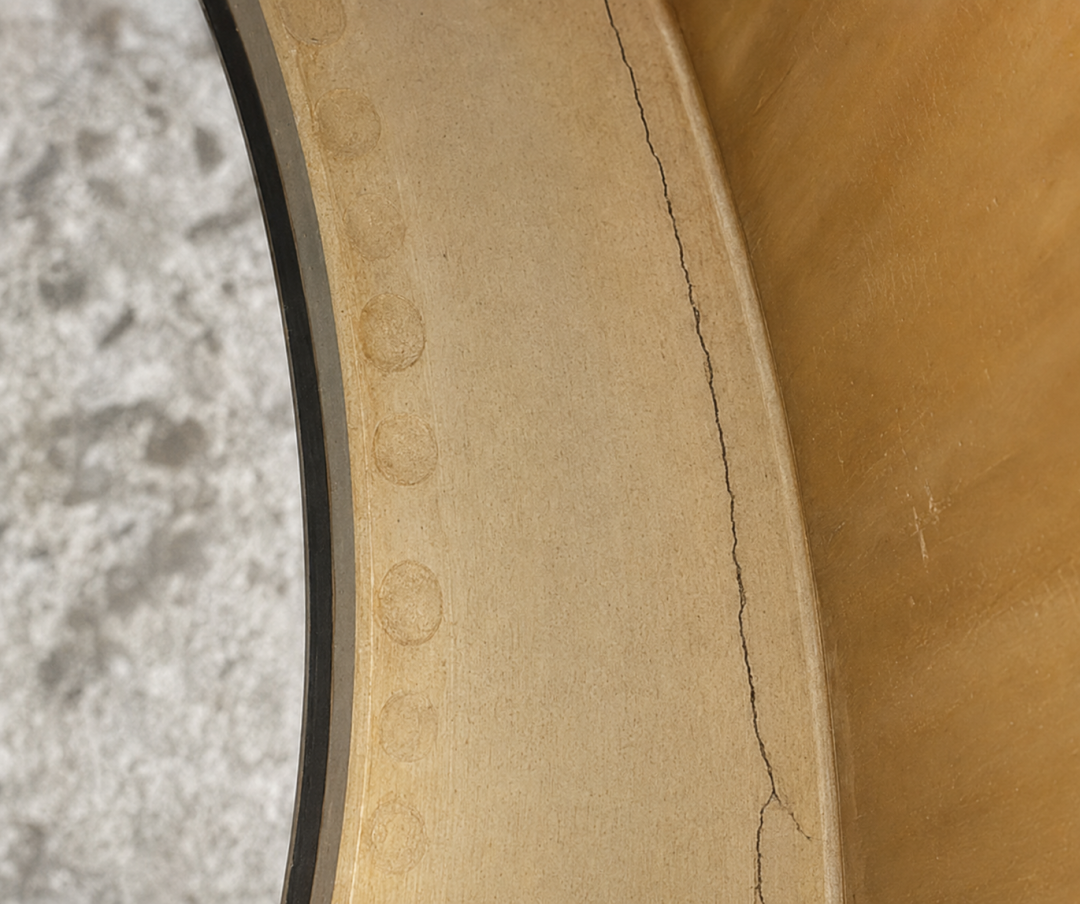

After inspection, EPSEA engineers confirmed that key operating parameters — including discharge pressure, oil temperature, and differential pressure — were all normal. Common causes such as a defective separator element, overfilling lubricant, and a blocked oil return line were ruled out. The actual issue was discovered after dismantling the air-oil vessel: a small crack had formed in the internal guide baffle.
How It Works: The Role of the Guide Baffle in Oil Separation

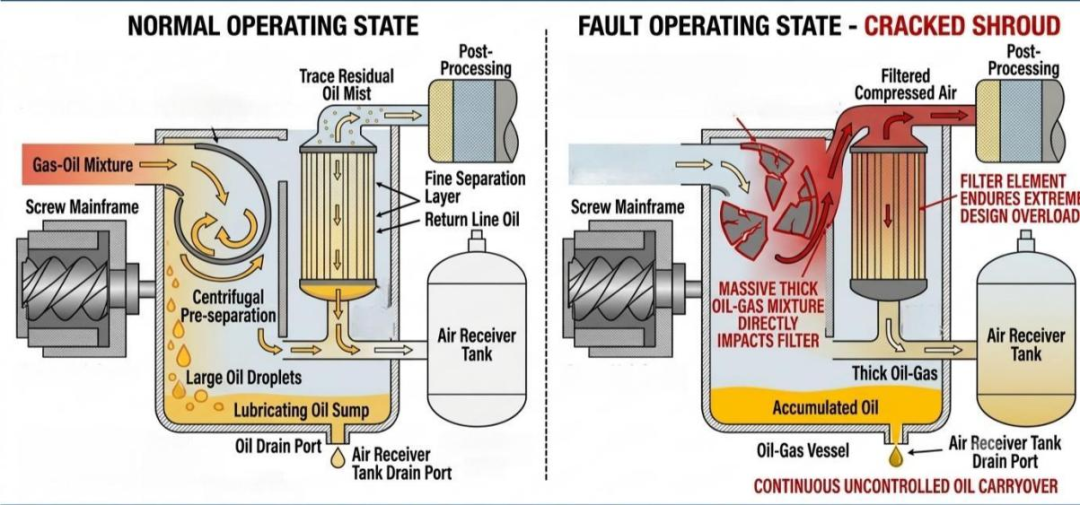

Oil-injected screw compressors typically use a three-stage oil separation process — Centrifugal pre-separation, Oil separator element filtration and Oil return system. The guide baffle creates centrifugal force to separate large oil droplets before they reach the separator element. The remaining oil mist is then captured by the separator for fine filtration. When the guide baffle cracks, the pre-separation stage becomes ineffective. A large volume of oil enters the separator directly, exceeding its design capacity. Even a new oil separator element cannot completely prevent oil carryover, causing lubricant to leave the system with the compressed air.
EPSEA engineers repaired the cracked guide baffle and restored its complete circular structure. After confirming there were no leaks, the compressor was tested under load for one hour. The oil return flow returned to normal, and no lubricant was found at the air tank drain. The oil carryover issue was completely resolved.
O&M Know-How: Avoid Unnecessary Separator Replacements Through Proper Diagnosis

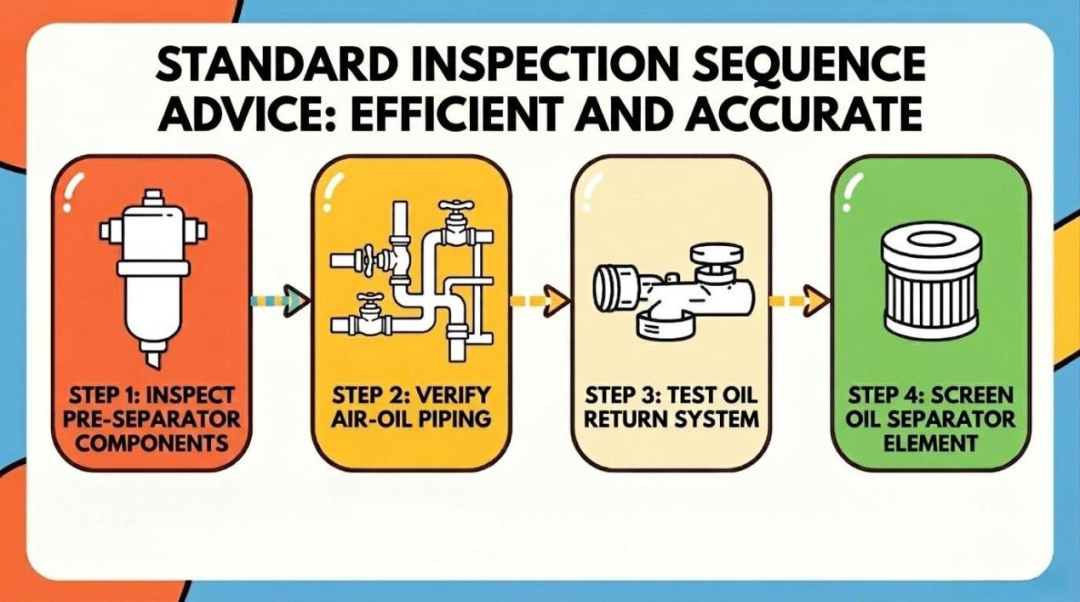

Excessive oil consumption after maintenance is not always caused by the separator element. Issues such as a cracked guide baffle, incorrect piping, blocked oil return lines, or improper installation can also lead to severe oil carryover and should not be overlooked.
Best Practice: Quality Filters and a Healthy Oil Return System

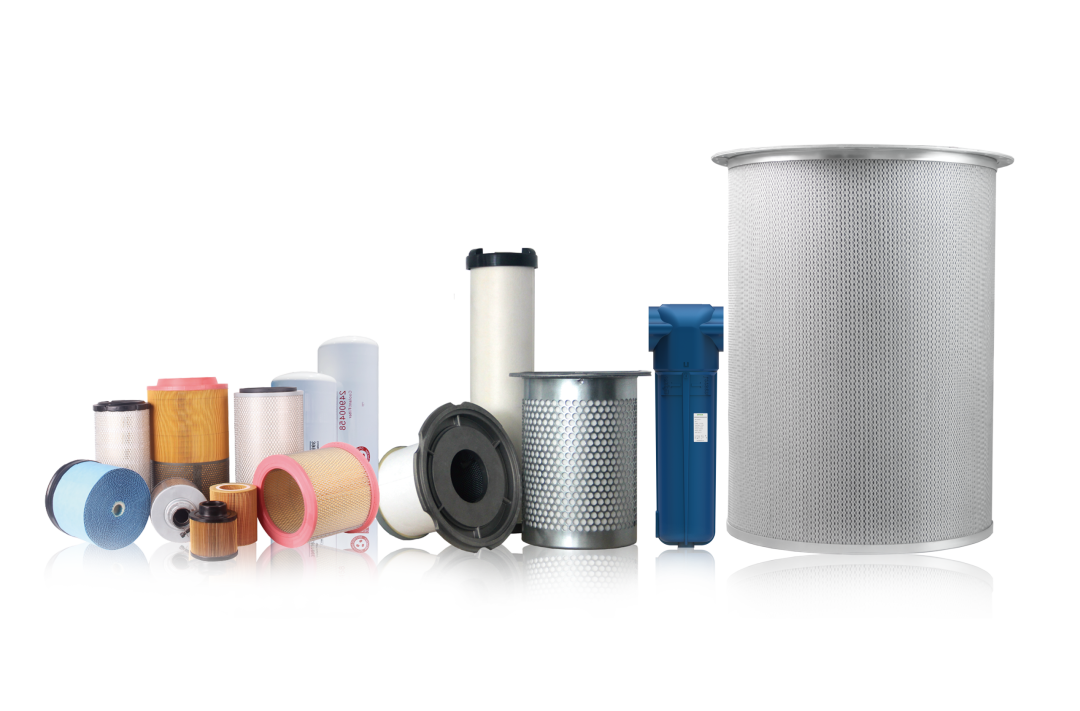

Stable compressor operation and effective oil consumption control require both a reliable oil separation system and premium filtration components. EPSEA's filter and separator products feature advanced filtration media and an optimized sealing design, delivering low pressure drop, excellent durability, and efficient oil-air separation. This helps reduce lubricant consumption, maintenance requirements, and overall operating costs over the long term.
